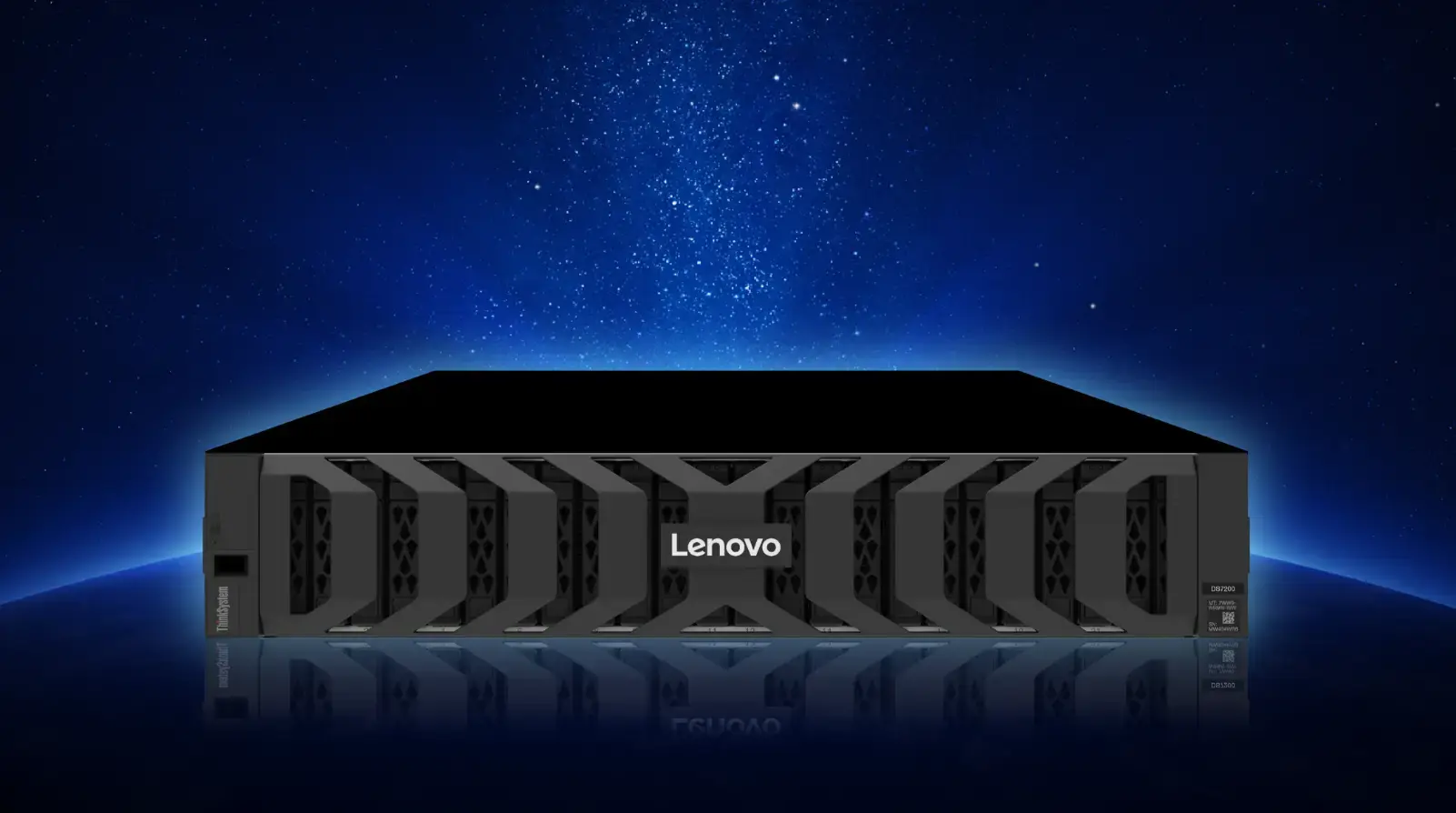

The ThinkSystem DS Series has Landed
More performance. Greater resilience. Less complexity.
Built for demanding block workloads, the Lenovo ThinkSystem DS Series combines high speed NVMe performance, active/active availability and a 5:1 supply advantage. It helps businesses achieve more while reducing storage complexity and cost.

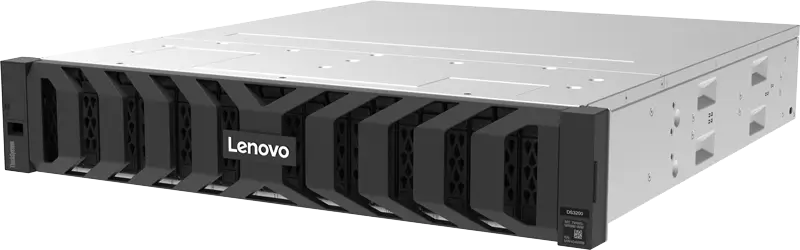

Powered by ONTAP software, the DS3200, DS5200 and DS7200 make it easier to provision, manage and scale storage through ONTAP System Manager. The result is a fast, resilient foundation for databases, VDI, ERP, analytics, DevOps and emerging AI workloads.
For businesses looking to modernise for the AI era without the complexity, while saving money at the same time.
Introducing the new Lenovo ThinkSystem DS Series.
The Lenovo ThinkSystem DS Series delivers a new era of performance, simplicity, and data protection for modern enterprises. With four new ultra-fast, all-flash performance storage arrays, it provides exceptional availability and robust security.
High-availability System
- 15TB–734TB raw
- Up to 3.2PB effective
- 2U base, 24 drives
Cluster
- 15TB–2.2PB raw
- Up to 9.3PB effective
Supported NVMe drives
- 1.92TB, 3.84TB, 7.68TB, 15.3TB
Protocols
- NVMe/FC, NVMe/TCP, FCP, iSCSI
Effective capacity calculation includes a 5:1 storage efficiency possibility (from usable)
High-availability System
- 15TB–1.1PB raw
- Up to 4.8PB effective
- 2U base, 24 drives
Cluster
- 15TB–4.4PB raw
- Up to 19PB effective
Supported NVMe drives
- 1.92TB, 3.84TB, 7.68TB, 15.3TB
Protocols
- NVMe/FC, NVMe/TCP, FCP, iSCSI
Effective capacity calculation includes a 5:1 storage efficiency possibility (from usable)
High-availability System
- 68TB–1.8PB raw
- Up to 8PB effective
- 2U base, 24 drives
Cluster
- 68TB–11PB raw
- Up to 48PB effective
Supported NVMe drives
- 1.92TB, 3.84TB, 7.68TB, 15.3TB
Protocols
- NVMe/FC, NVMe/TCP, FCP, iSCSI
Effective capacity calculation includes a 5:1 storage efficiency possibility (from usable)
High-availability System
- 122TB–1.47PB raw
- Up to 6PB effective
- 2U base, 24 drives
Cluster
- 122TB–5.8PB raw
- Up to 24PB effective
Supported NVMe drives
- 15.3TB, 30.7TB
Protocols
- NVMe/FC, NVMe/TCP, FCP, iSCSI
Effective capacity calculation includes a 5:1 storage efficiency possibility (from usable)
Simple, powerful, and secure all-flash block storage.
- High performance all-flash arrays
- Industry-leading snapshot technology
- Robust async, sync, and active-sync replication
- Single storage pool to manage
- Fewer storage containers to manage
- Configure in minutes, provision in seconds
- Integrated ransomware protection
- Software and hardware encryption
- Immutable snapshots
